2 Player Wiring Kit (HAPP)

2 Player Wiring Kit (HAPP)

Regular price $24.99 USD
Regular price Sale price $24.99 USD
Sale Sold out

Quickly Connect 2 HAPP joysticks & 20 HAPP Buttons

This kit has wiring to connect 2 HAPP/IL style joysticks (0.187"/4.8mm connectors) and up to 20 HAPP style buttons (0.187" connectors) to your 2000T or 4000T (order 2 kits for 4 players).

plug the connectors onto your joysticks and buttons, then cut to length and strip.

There are 10 unique colors for buttons, and 4 repeated colors for the joystick. Refer to the suggested color for wiring in table below.

Many other brands use these .187"/4.8mm connectors.

This will NOT fit japanese style buttons such as Sanwa (we will have seperate Sanwa kit available soon).

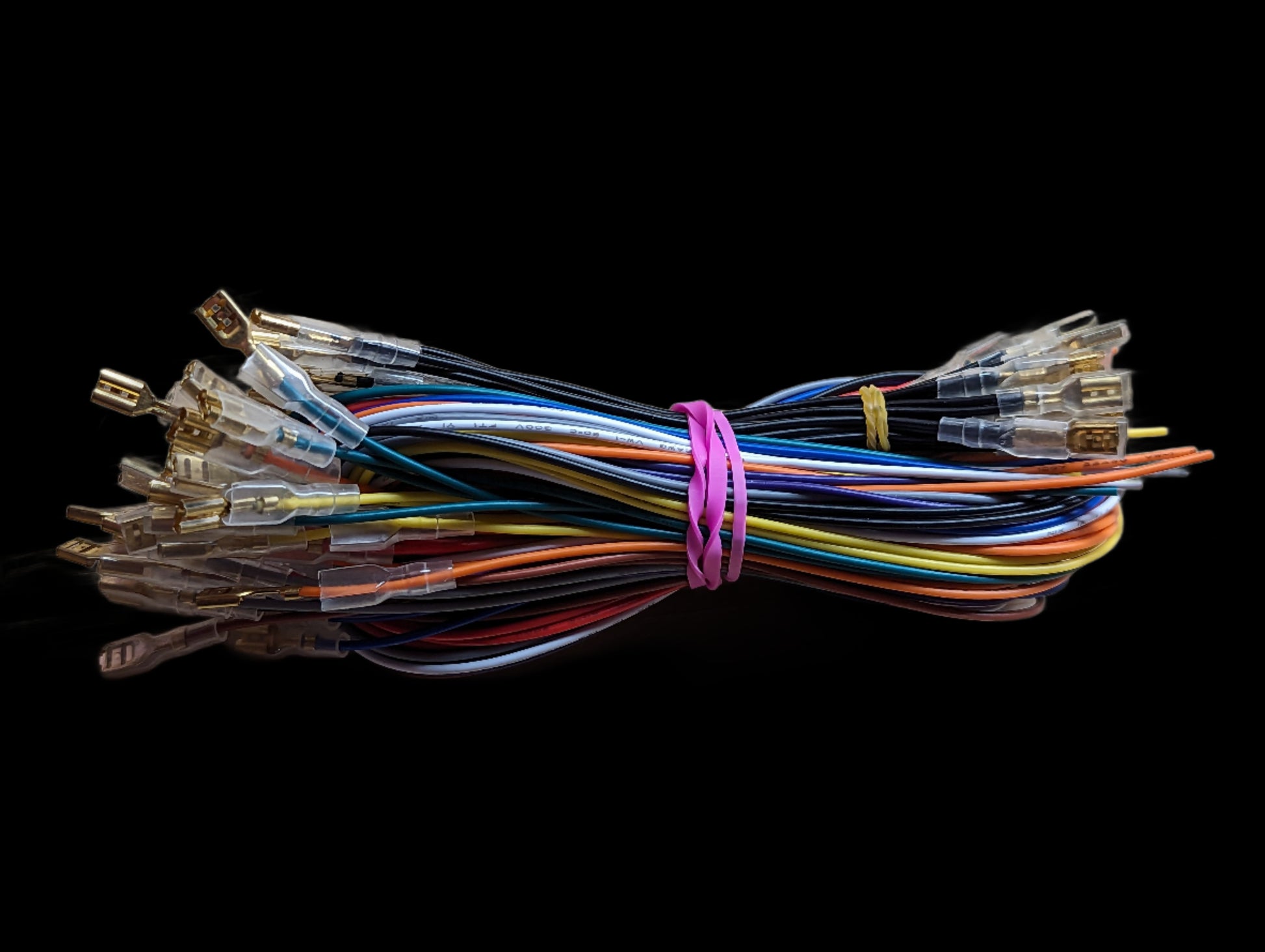

Summary of Included Parts:

  • 1 - 32chain Ground Wire Harness with .187"/4.8mm insulated connectors
  • 28 - 1m wires with .187"/4.8mm Insulated Connectors (see below for detail of colors)

Ground harness is 3m total length, 140mm between connections, with a total of 32 terminals in the daisy chain. Connect this to any ground on the Pacto tech board, then run it to one side of every button and joystick switch.

Detailed Parts List:

Description Quantity
32C Daisy Chain GroundHarness with .187" Connectors 1
Orange 1m Wire with .187" Connector 4
Red 1m Wire with .187" Connector 4
Yellow 1m Wire with .187" Connector 4
Green 1m Wire with .187" Connector 4
Blue 1m Wire with .187" Connector 2
Purple 1m Wire with .187" Connector 2
Gray 1m Wire with .187" Connector 2
Black 1m Wire with .187" Connector 2
White 1m Wire with .187" Connector 2
Brown 1m Wire with .187" Connector 2

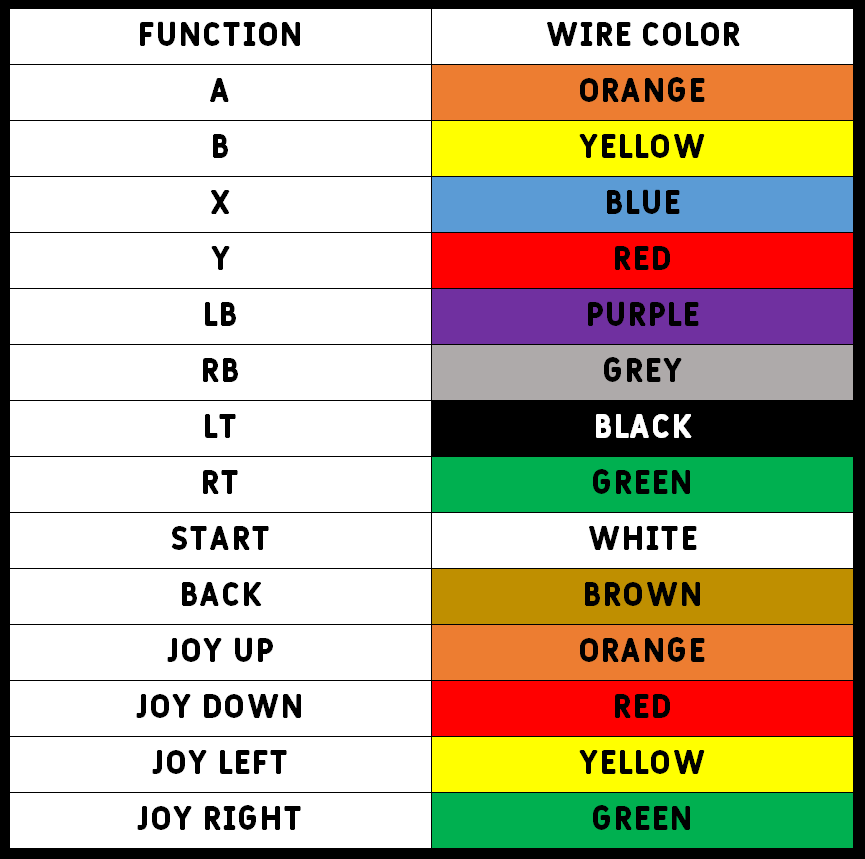

Suggested Wiring Colors:

Function Wire Color
A (Jump) Orange
B (Kick) Yellow
X (Punch) Blue
Y (Heavy Punch) Red
LB Purple
RB Grey
LT Black
RT Green
Start White
Back Brown
D-Pad Up Orange
D-Pad Down Red
D-Pad Left Yellow
D-Pad Right Green
