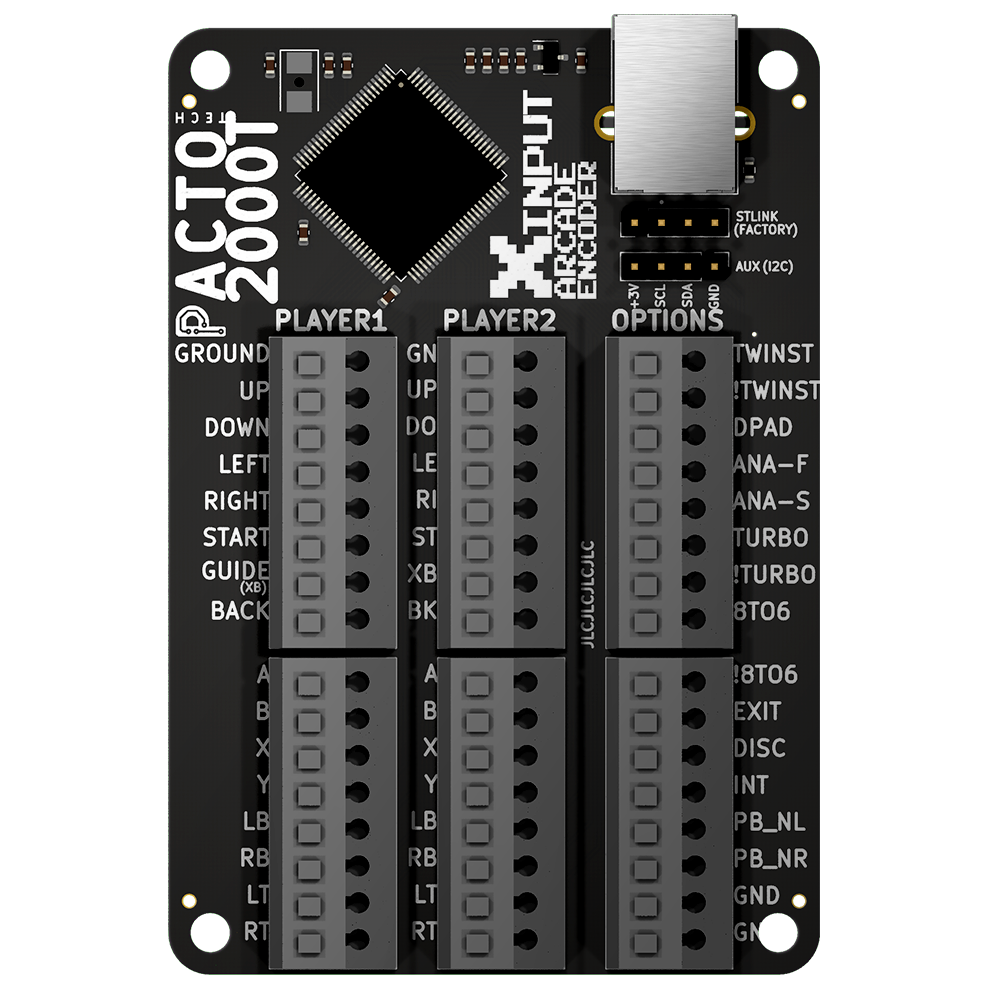

2 Player Arcade Cabinet Control Interface

• The most clearly labelled and easy to wire encoder available

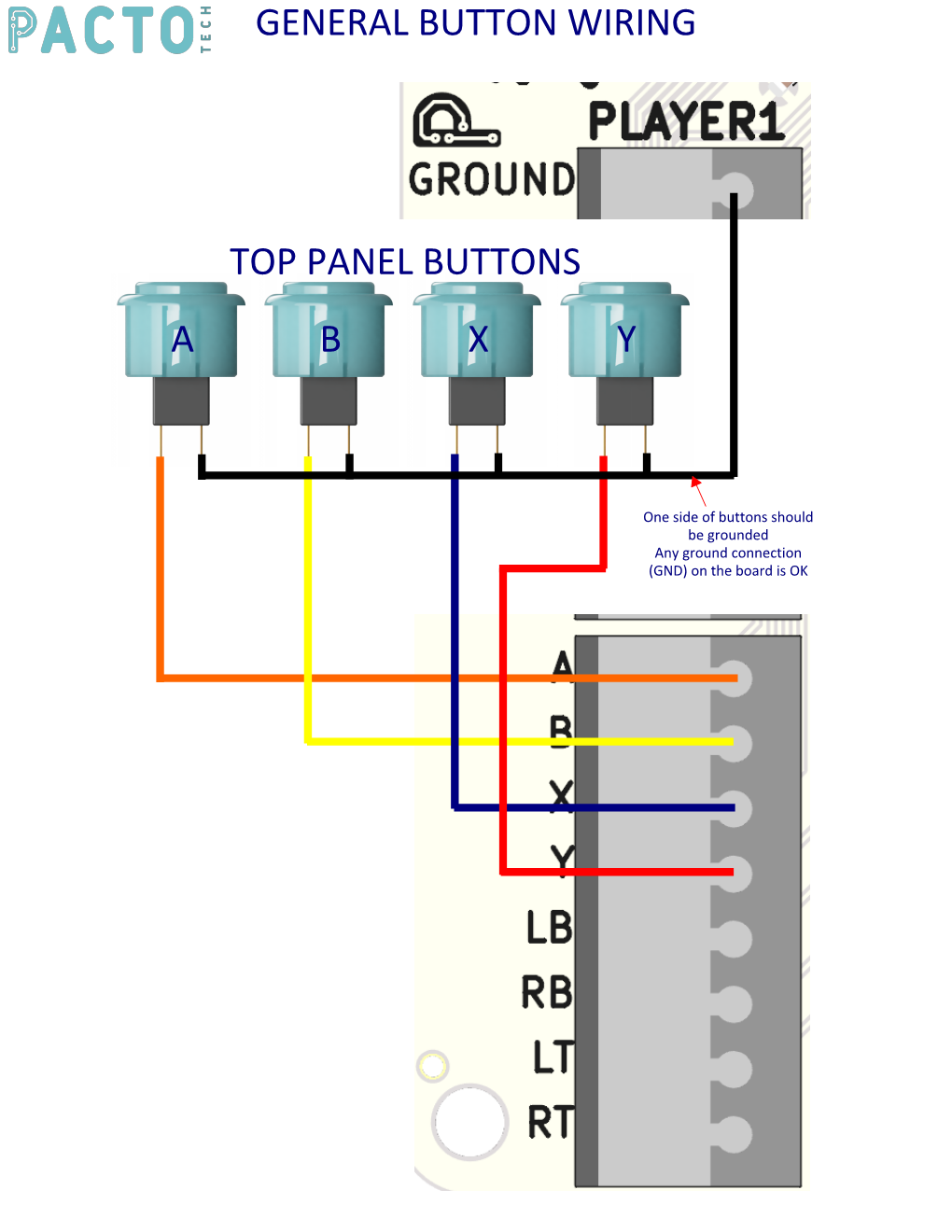

• high quality easy to use spring terminals for fast wiring
• Only operates in xinput mode (no need to configure to avoid dinput)
• Xinput Protocol (Emulates 2 Xbox 360 controllers)
• Keeps players in order, even after reboot or switching USB ports
• Compatible with Windows and Linux based systems, including Raspberry Pi (not compatible with Xbox console)
• Ultra Low Latency
• Sends control state to PC every 1ms(compared to 8ms for Microsoft Xbox 360 controller, and worse for cheaper interfaces)
• Turbo Mode (pulse buttons 15 times per second for games like 1941 with no autofire)

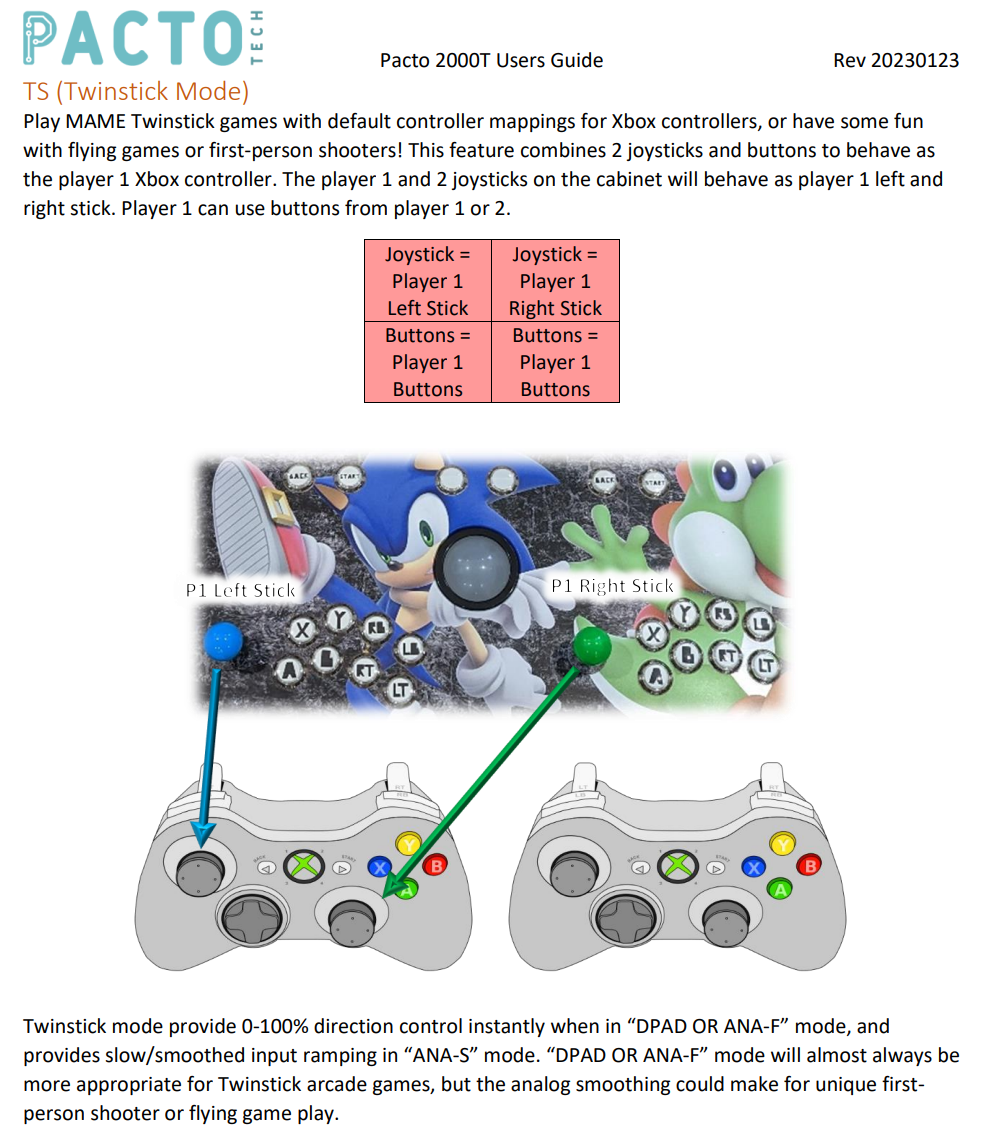

• Twinstick Mode (player 2 joystick becomes the right analog stick for player 1, for twinstick games like smash TV, without needing to remap controls)
• On the fly remapping modern 8 button layout to popular 6 button layout to use default configurations for Coinops, Hyperspin, MAME, etc.

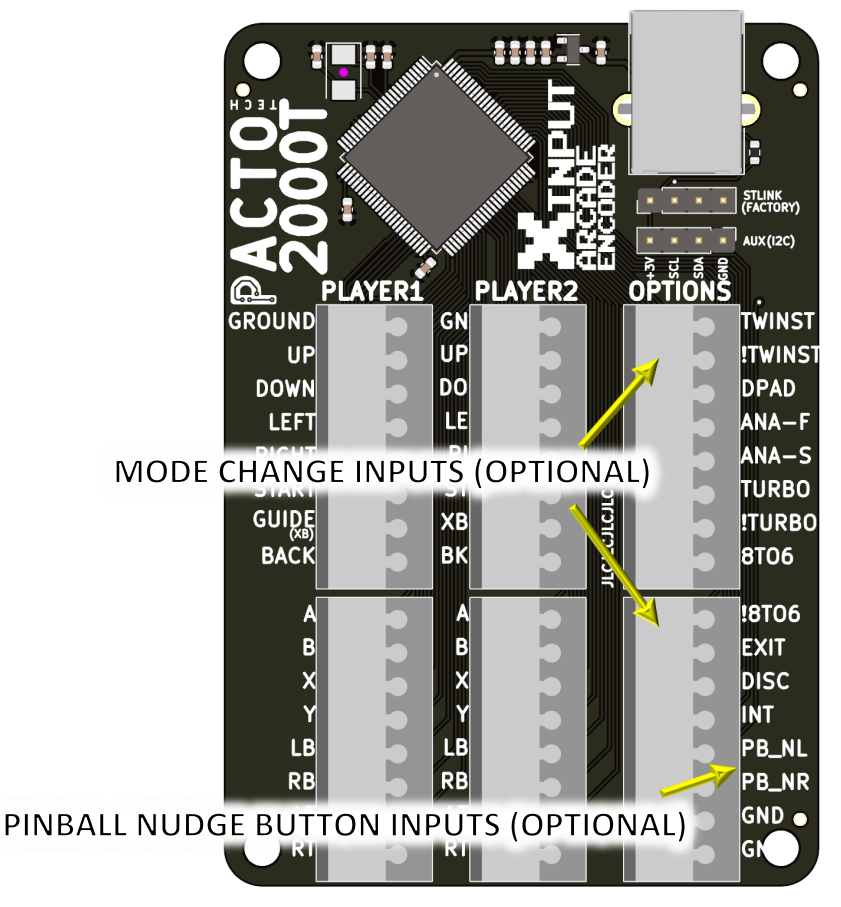

• Pinball Nudge left and nudge right emulate analog stick push left or right
• Dedicated start and back "exit" button
• Hits start and back together when pressing this single button
• Popular default setting to exit emulator games

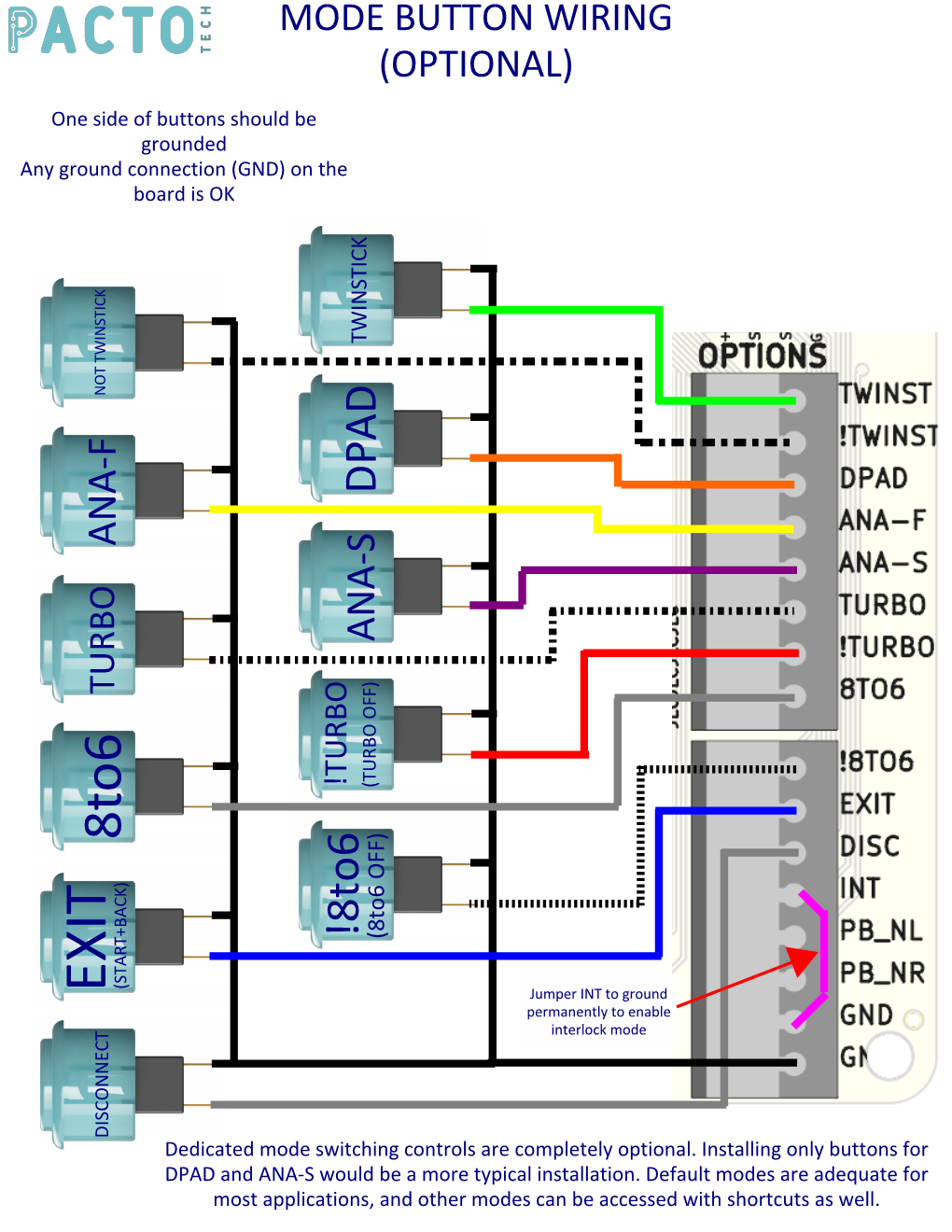

• Optional "Interlock Mode"
• Blocks start and back from being hit at the same time accidentally (avoids accidentally exiting games)
• Must hold both for 2 seconds before it will output together
